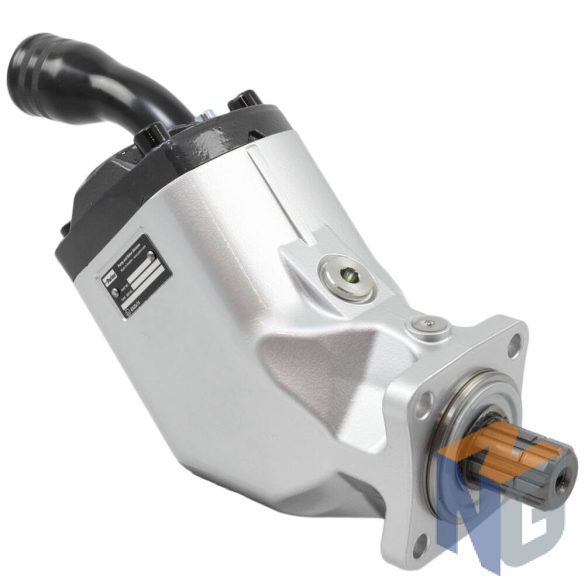

F1-81-LB Axial piston fixed pump

F1-81-LB Axial piston fixed pump
F1-81-LB Axial piston fixed pump
F1-81-LB Axial piston fixed pump
F1-81-LB Axial piston fixed pump
F1-81-LB Axial piston fixed pump
F1-81-LB Axial piston fixed pump

Part number: 3784081

Parker F1 hydraulic truck pump series has operating pressures up to 400 bar (5,800 psi) and speeds up to 3100 rpm. The F1 pump has a robust design that provides circuit reliability for the most demanding truck applications, sizes from 12-103 cc.

The pump does not include a suction fitting. It must be ordered separetly!

More infromation on our supplier page:

https://ph.parker.com/hu/en/axial-piston-fixed-pumps-series-f1

Series:
Direction:
Max.flow [l/min]:
Max.pressure [BAR]:
Speed rpm (min/max):
Torque:
To Favourites
Recommend
Print
Comparison
Question about the product
Details
Info
Details

The F1 offers many additional values for operators of:

      • Cargo cranes
      • Hook loaders
      • Skip loaders
      • Forest cranes
      • Concrete mixers and similar truck applications.


Features of the F1 are:

      • High selfpriming speeds
      • Operating pressures up to 400 bar
      • High overall efficiency
      • Low noise level
      • Small installation dimensions
      • Low weight


... thanks to:

      - 45° bent-axis angle
      - Optimal inlet port geometry in the end cap
      - Single housing design
      - Spherical pistons - high speeds
      - Laminated piston rings - low leakage
      - Positive synchronisation with timing gear
      - Installation above the reservoir level possible
      - Tolerates low temperatures and high temperature shocks
          - Shaft end and mounting flange meet the ISO standard for all sizes




      Size

      12

      25

      41

      51

      61

      81

      101

      Displacement [cm3/rev]

      12

      25,6

      40,9

      51,1

      59,5

      81,6

      102,9

      Max flow [l/min]

      28

      67

      98

      112

      131

      163

      185

      Max. operating pressure [BAR]

      350

      400

      400

      400

      400

      400

      400

      Shaft speed [rpm]

      short circuited pump (low press.)

       max speed at 350 BAR



      2300

      3100



      2700

      2600



      2700

      2400



      2700

      2200



      2700

      2200



      2300

      2000



      2300

      1800

      Torque [Nm]

      67

      163

      260

      324

      378

      518

      653

      Input power [kW]

      16

      39

      57

      66

      76

      95

      108

      Weight [kg]

      6,7

      8,5

      8,5

      8,5

      8,5

      12,5

      12,5

      Info
      Body material
      Aluminium
      Hydraulic circle type
      Open
      Configuration
      Single
      Energy recovery ability
      No
      Includes filter
      No
      Liquid type
      Standard hydraulic fluid
      Maximum liquid temperature
      120 °C 248 °F
      Minimum liquid temperature
      -40 °C -40 °F
      Maximum kinematic viscosity
      1866 SUS
      Minimum kinematics viscosity
      47 SUS
      Capture option
      ISO - DIN
      Join stump
      BSPP
      Connector location
      Rear ports
      Pump type
      Piston fixed
      Axis type
      ISO - DIN
      Thru-drive capability
      No
      Weight
      12.5 kg/pcs
