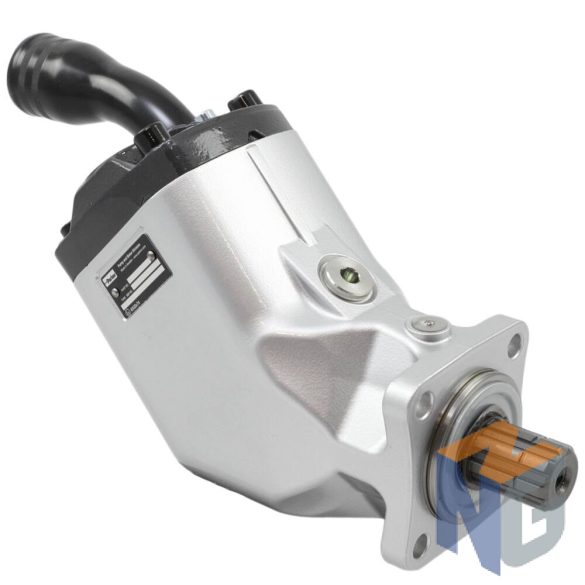

F1-25-L Axial piston fixed pump

F1-25-L Axial piston fixed pump
F1-25-L Axial piston fixed pump
F1-25-L Axial piston fixed pump
F1-25-L Axial piston fixed pump
F1-25-L Axial piston fixed pump
F1-25-L Axial piston fixed pump

Part number: 3781025

Parker F1 hydraulic truck pump series has operating pressures up to 400 bar (5,800 psi) and speeds up to 3100 rpm. The F1 pump has a robust design that provides circuit reliability for the most demanding truck applications, sizes from 12-103 cc.

The pump does not include a suction fitting. It must be ordered separetly!

More infromation on our supplier page:

https://ph.parker.com/hu/en/axial-piston-fixed-pumps-series-f1

Series:
Direction:
Max.flow [l/min]:
Max.pressure [BAR]:
Speed rpm (min/max):
Torque:
To Favourites
Recommend
Print
Comparison
Question about the product
Details
Info
Details

The F1 offers many additional values for operators of:

      • Cargo cranes
      • Hook loaders
      • Skip loaders
      • Forest cranes
      • Concrete mixers and similar truck applications.


Features of the F1 are:

      • High selfpriming speeds
      • Operating pressures up to 400 bar
      • High overall efficiency
      • Low noise level
      • Small installation dimensions
      • Low weight


... thanks to:

      - 45° bent-axis angle
      - Optimal inlet port geometry in the end cap
      - Single housing design
      - Spherical pistons - high speeds
      - Laminated piston rings - low leakage
      - Positive synchronisation with timing gear
      - Installation above the reservoir level possible
      - Tolerates low temperatures and high temperature shocks
      - Shaft end and mounting flange meet the ISO standard for all sizes





Size

25

41

51

61

81

101

Displacement [cm3/rev]

25,6

40,9

51,1

59,5

81,6

102,9

Max flow [l/min]

67

98

112

131

163

185

Max. operating pressure [BAR]

400

400

400

400

400

400

Shaft speed [rpm]

short circuited pump (low press.)

 max speed at 350 BAR



2700

2600



2700

2400



2700

2200



2700

2200



2300

2000



2300

1800

Torque [Nm]

163

260

324

378

518

653

Input power [kW]

39

57

66

76

95

108

Weight [kg]

8,5

8,5

8,5

8,5

12,5

12,5

Info
Body material
Aluminium
Hydraulic circle type
Open
Configuration
Single
Energy recovery ability
No
Includes filter
No
Liquid type
Standard hydraulic fluid
Maximum liquid temperature
120 °C 248 °F
Minimum liquid temperature
-40 °C -40 °F
Maximum kinematic viscosity
1866 SUS
Minimum kinematics viscosity
47 SUS
Capture option
ISO - DIN
Join stump
ISO - BSPP
Connector location
Rear ports
Pump type
Piston fixed
Axis type
ISO - DIN
Thru-drive capability
No
Weight
8.5 kg/pcs
