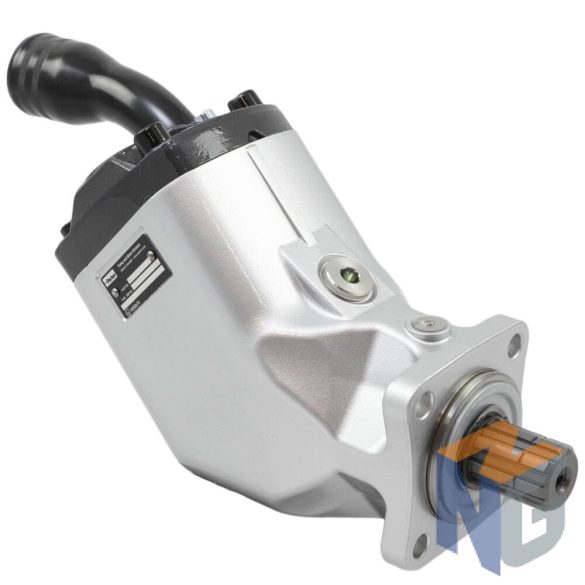

F1-41-LU Axial piston fixed pump

The F1 offers many additional values for operators of:

• Cargo cranes

• Hook loaders

• Skip loaders

• Forest cranes

• Concrete mixers and similar truck applications.

Features of the F1 are:

• High selfpriming speeds

• Operating pressures up to 400 bar

• High overall efficiency

• Low noise level

• Small installation dimensions

• Low weight


... thanks to:

- 45° bent-axis angle

- Optimal inlet port geometry in the end cap

- Single housing design

- Spherical pistons - high speeds

- Laminated piston rings - low leakage

- Positive synchronisation with timing gear

- Installation above the reservoir level possible

- Tolerates low temperatures and high temperature shocks
- Shaft end and mounting flange meet the SAE-B standard for all sizes





Size	25	41	51	61
Displacement [cm3/rev]	25,6	40,9	51,1	59,5
Max flow [l/min]	67	98	112	131
Max. operating pressure [BAR]	350	350	350	350
Shaft speed [rpm] short circuited pump (low press.)  max speed at 350 BAR	2700 2600	2700 2400	2700 2200	2700 2200
Torque [Nm]	142	227	284	331
Input power [kW]	39	57	66	76
Weight [kg]	8,5	8,5	8,5	8,5
